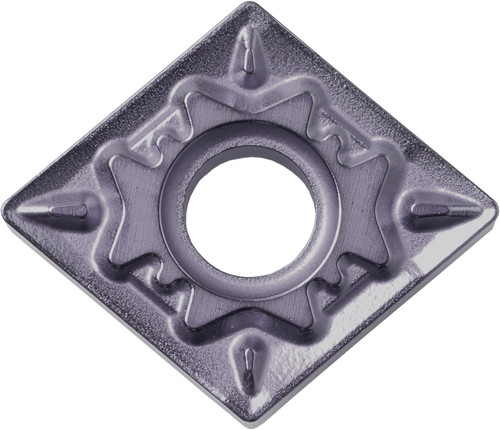

Kyocera CNMG 432HQ PR1535 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC40056
$19.05
Kyocera CNMG 432HQ PR1535 Grade PVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Corner Radius
1/32 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
CNMG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
432
Old Material Number
8866452
ANSI Part Number
CNMG432HQPR1535
ISO Part Number
CNMG120408HQ
Rake
Negative
Material Group / Grade
PR1535
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Thickness (Metric)
4.76
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
