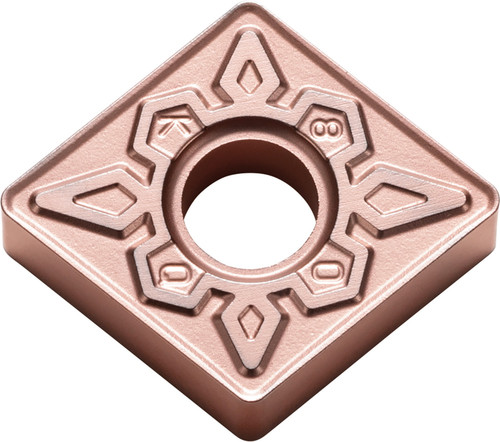

Kyocera Turning Insert CNMG432KQ CA315: TMD01011

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMD01011
$18.17

Kyocera ISOI turning insert for cast iron, 1/2 in (12.70 mm) IC, 80 degree diamond shape, negative rake, 4 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TMD01011.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
IC Size (Metric)
12.70
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CNMG432KQCA315
Insert Style
CNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
432
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CA315
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Workpiece Material
Cast Iron
ISO Designation
CNMG120408KQ
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
KQ
Pack quantity
10
