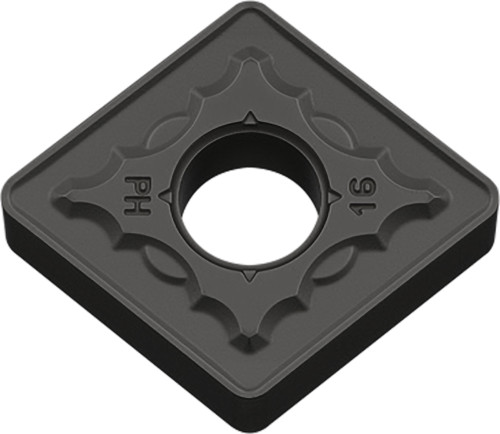

Kyocera Turning Insert CNMG432PH CA4515: TJH00911

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJH00911
$18.17

Kyocera ISOI turning insert for cast iron, 1/2 in (12.70 mm) IC, 80 degree diamond shape, negative rake, 4 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, CVD coated. Order reference TJH00911.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Insert Thickness (Metric)
4.76
IC Size (Metric)
12.70
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CNMG432PHCA4515
Insert Style
CNMG
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
432
Insert Grade
CA4515
Workpiece Material
Cast Iron
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Coating Process
CVD
ISO Designation
CNMG120408PH
Cutting Range
Roughing
Usage Classification
Heavy Interruption
IC Size (Fractional)
1/2
Chip Breaker Type
PH
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA45-Series-8pg-Brochure.pdf
