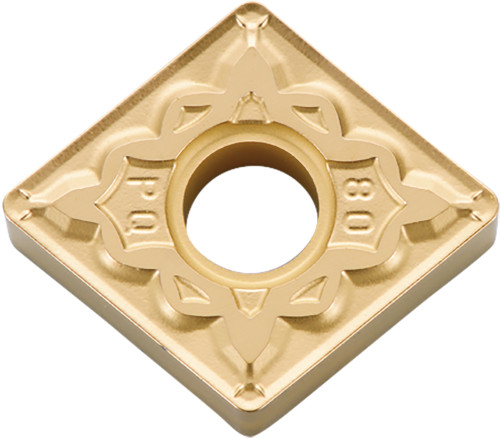

Kyocera Turning Insert CNMG432PQ CA125P: TMK00006
SKU: KYP-TMK00006
Kyocera Turning Insert CNMG432PQ PV710, manufacturer part number TLF01797.
Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8846803; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 432; Hand Direction: Neutral; Insert Style: CNMG; Insert Shape: 80 Degree Diamond; ANSI Designation: CNMG432PQPV710; Chip Breaker Type: PQ; ISO Designation: CNMG120408PQ; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: PV710; Workpiece Material: Steel; Coating Process: PVD.
Material: Cermet. Coating/Finish: TiCN (MEGACOAT NANO). Series: ISOI. Unit of measure: Inch.
