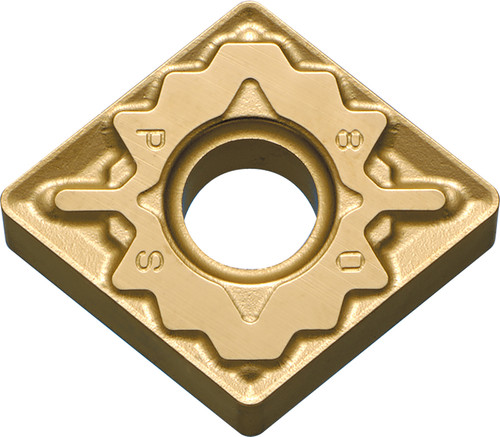

Kyocera CNMG 432PS CA6525 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJV00901
$18.17
Kyocera CNMG 432PS CA6525 Grade CVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium-Roughing in (M) Stainless Steel and (S) Heat-Resistant Alloy

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(M) Stainless Steel
Corner Radius
1/32 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
CNMG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
432
Old Material Number
8822363
ANSI Part Number
CNMG432PSCA6525
ISO Part Number
CNMG120408PS
Rake
Negative
Material Group / Grade
CA6525
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Thickness (Metric)
4.76
Chipbreaker
PS
Cutting Range
Medium-Roughing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera CNMG 432PS CA6525 Grade CVD Carbide, Indexable Turning Insert
$18.17
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
