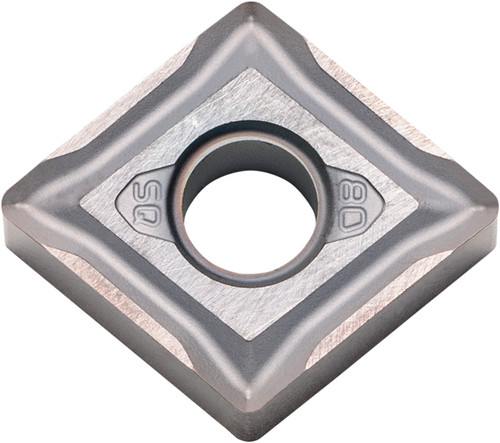

Kyocera Turning Insert CNMG432SQ PR005S: TLH10001

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLH10001
$19.27

Kyocera Turning Insert CNMG432SQ PR005S, manufacturer part number TLH10001.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8858252; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 432; Hand Direction: Neutral; Insert Style: CNMG; Insert Shape: 80 Degree Diamond; ANSI Designation: CNMG432SQPR005S; Chip Breaker Type: SQ; ISO Designation: CNMG120408SQ; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: PR005S; Workpiece Material: High-Temp Alloy; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT HARD. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
MEGACOAT HARD
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CNMG432SQPR005S
Insert Style
CNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
432
Old Material Number
8858252
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
PR005S
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Workpiece Material
High-Temp Alloy
ISO Designation
CNMG120408SQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
PVD
Chip Breaker Type
SQ
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR005S_PR015S.pdf
