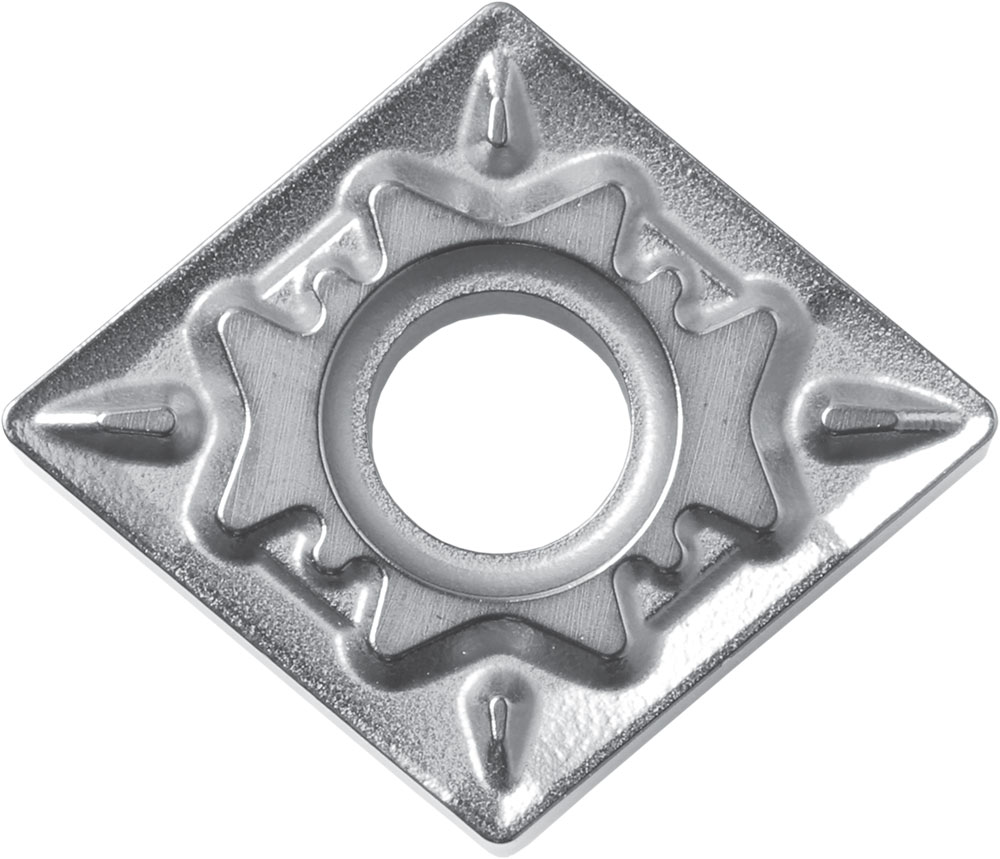

Kyocera CNMG 433HQ TN620 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR01772
$17.29
Kyocera CNMG 433HQ TN620 Grade Uncoated Cermet, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
3/64 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
CNMG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
433
Old Material Number
8862559
ANSI Part Number
CNMG433HQTN620
ISO Part Number
CNMG120412HQ
Rake
Negative
Material Group / Grade
TN620
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Thickness (Metric)
4.76
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera CNMG 433HQ TN620 Grade Uncoated Cermet, Indexable Turning Insert
$17.29
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
