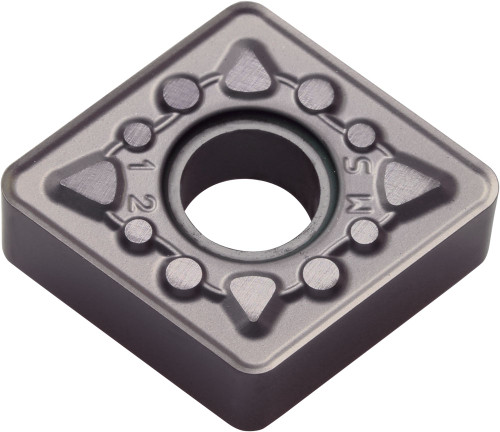

Kyocera CNMG 433MS PR1535 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC50923
$19.27
Kyocera CNMG 433MS PR1535 Grade PVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium-Roughing in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Corner Radius
3/64 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
CNMG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
433
Old Material Number
8843963
ANSI Part Number
CNMG433MSPR1535
ISO Part Number
CNMG120412MS
Rake
Negative
Material Group / Grade
PR1535
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Thickness (Metric)
4.76
Chipbreaker
MS
Cutting Range
Medium-Roughing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1535_for_Turning.pdf
Kyocera CNMG 433MS PR1535 Grade PVD Carbide, Indexable Turning Insert
$19.27
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
