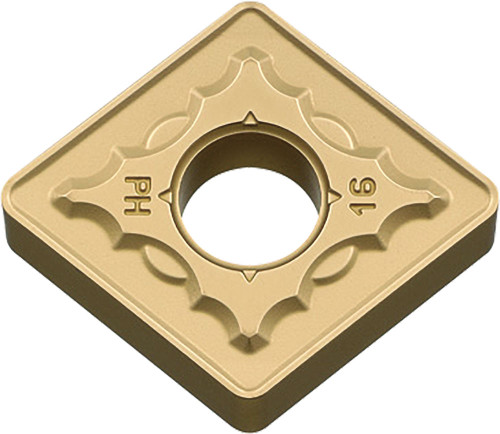

Kyocera Turning Insert CNMG434PH CA530: TAD00913

Kyocera Turning Insert CNMG434PH CA530, manufacturer part number TAD00913.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/16 in (1.60 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8840924; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Roughing; Usage Classification: Continuous to Heavy Interruption; Insert Size: 434; Hand Direction: Neutral; Insert Style: CNMG; Insert Shape: 80 Degree Diamond; ANSI Designation: CNMG434PHCA530; Chip Breaker Type: PH; ISO Designation: CNMG120416PH; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CA530; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
