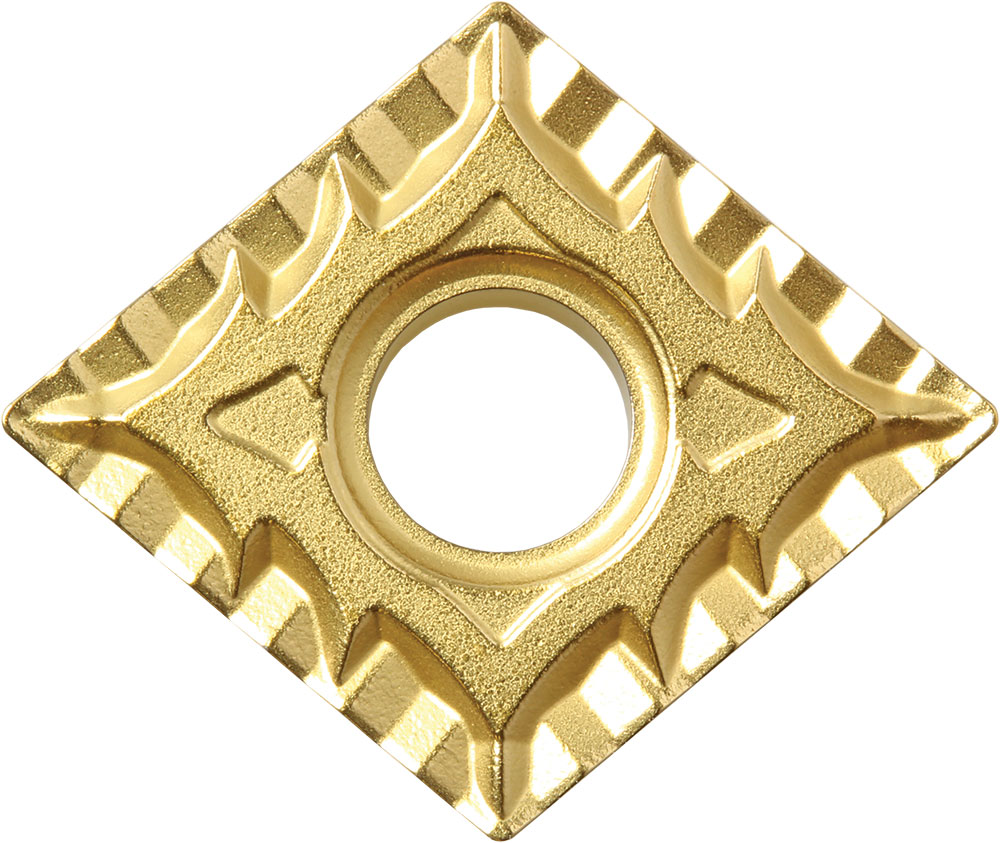

Kyocera Turning Insert CNMG542CQ CA025P: TMH00096

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMH00096
$30.56

Kyocera ISOI turning insert for steel, 5/8 in (15.875 mm) IC, 80 degree diamond shape, negative rake, 4 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMH00096.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
6.35
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CNMG542CQCA025P
Insert Style
CNMG
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
542
Insert Grade
CA025P
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
1/4
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Coating Process
CVD
IC Size (Fractional)
5/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
15.875
Chip Breaker Type
CQ
ISO Designation
CNMG160608CQ
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA025P_CVD_Coated_Carbide_for_Steel.pdf
