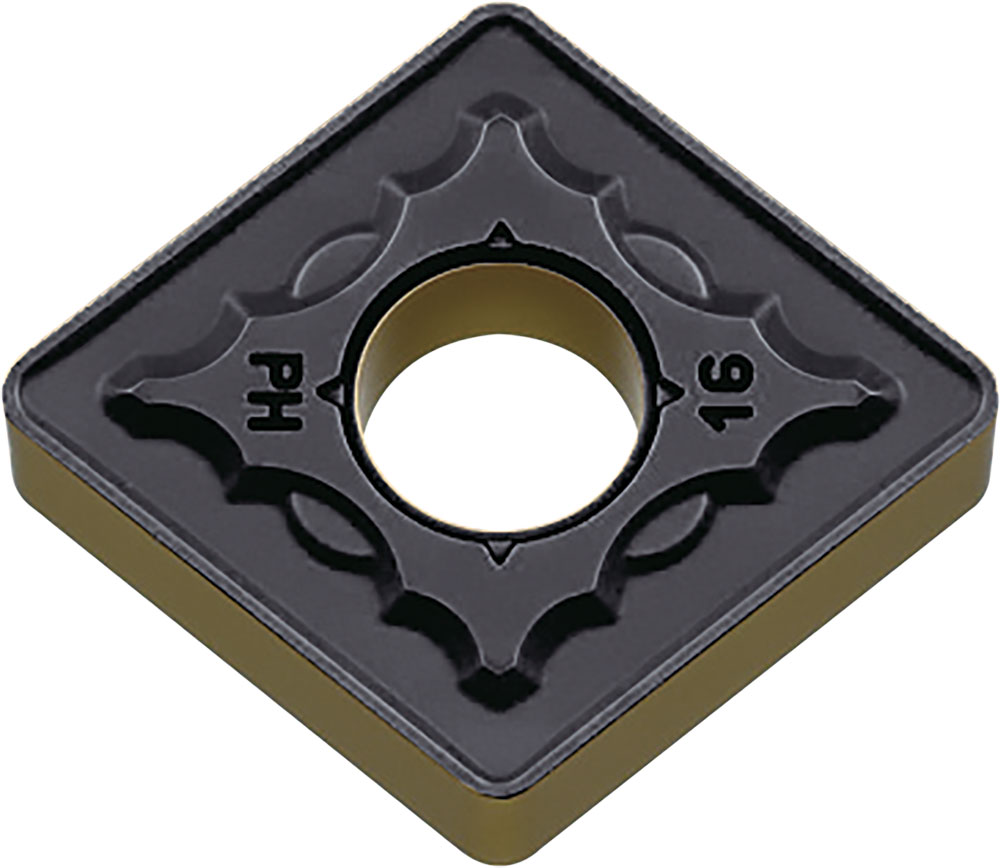

Kyocera Turning Insert CNMG542PH CA115P: 80 Degree Diamond, 4 Cutting Edges, 1/32" Nose Radius, TML00101

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00101
$30.56

Turn, face and profile with this 5/8" IC CA115P grade turning insert.

Kyocera Series ISOI inserts are made for steel and high-temp alloys.

  • Insert style: CNMG
  • Insert shape: 80 Degree Diamond
  • IC size: 5/8"
  • Insert thickness: 1/4"
  • Corner radius: 1/32"
  • Chip breaker type: PH
  • Insert grade: CA115P
  • Coating/finish: TiCN/Al2O3/TiN
  • Workpiece material: Steel
  • ANSI designation: CNMG542PHCA115P

Kyocera part number TML00101.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
6.35
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CNMG542PHCA115P
Insert Style
CNMG
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
542
Insert Grade
CA115P
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
1/4
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Coating Process
CVD
IC Size (Fractional)
5/8
Cutting Range
Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
15.875
Chip Breaker Type
PH
ISO Designation
CNMG160608PH
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
