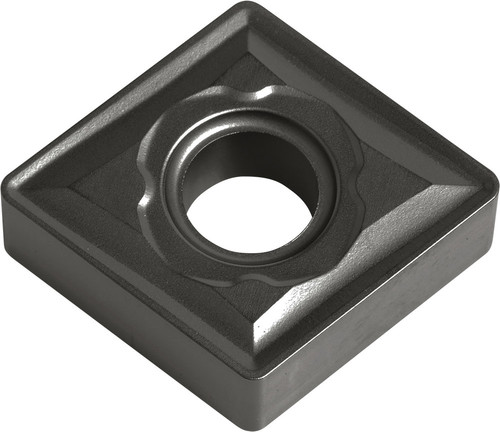

Kyocera CNMG 543C CA4515 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJH01035
$30.56
Kyocera CNMG 543C CA4515 Grade CVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Heavy Interruption and Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Thickness (Fractional)
1/4
Corner Radius (Fractional)
3/64
Included Angle
80
ANSI Designation
CNMG543CCA4515
Insert Style
CNMG
Insert Grade
CA4515
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
543
Old Material Number
8831498
Workpiece Material
Cast Iron
Coating Process
CVD
Rake
Negative
Insert Thickness (Metric)
6.35
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
IC Size (Fractional)
5/8
Cutting Range
Roughing
Usage Classification
Heavy Interruption
IC Size (Metric)
15.875
Chip Breaker Type
C
ISO Designation
CNMG160612C
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA45-Series-8pg-Brochure.pdf
