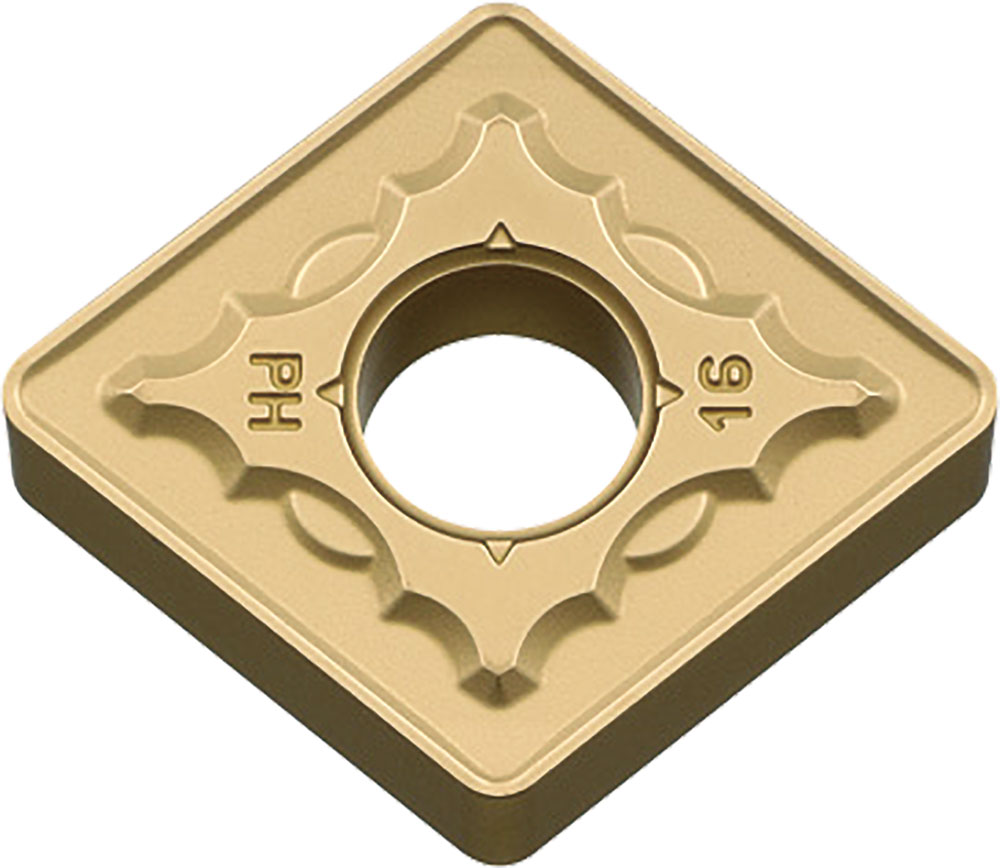

Kyocera Turning Insert CNMG543PH CA320: TME01062

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TME01062
$30.56

Kyocera ISOI turning insert for cast iron, 5/8 in (15.875 mm) IC, 80 degree diamond shape, negative rake, 4 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TME01062.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Metric)
6.35
Corner Radius (Fractional)
3/64
Included Angle
80
ANSI Designation
CNMG543PHCA320
Insert Style
CNMG
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
543
Insert Grade
CA320
Workpiece Material
Cast Iron
Rake
Negative
Insert Thickness (Fractional)
1/4
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Coating Process
CVD
IC Size (Fractional)
5/8
Cutting Range
Roughing
Usage Classification
Continuous to Heavy Interruption
IC Size (Metric)
15.875
Chip Breaker Type
PH
ISO Designation
CNMG160612PH
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA3-Series_W.pdf
