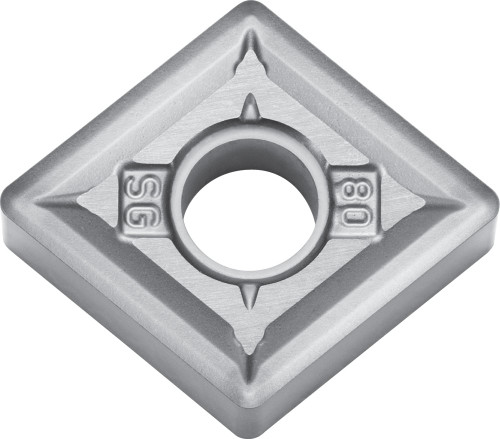

Kyocera CNMG 543SG SW05 Grade Uncoated Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWH01050
$36.45
Kyocera CNMG 543SG SW05 Grade Uncoated Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Roughing in (S) Titanium Alloy

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(S) Titanium Alloy
Corner Radius
3/64 Inch
Included Angle
80 degrees
Thickness
1/4 Inch
Style
CNMG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
543
Old Material Number
8861419
ANSI Part Number
CNMG543SGSW05
ISO Part Number
CNMG160612SG
Rake
Negative
Material Group / Grade
SW05
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Thickness (Metric)
6.35
Chipbreaker
SG
Cutting Range
Roughing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
15.88
Inscribed Circle
5/8 Inch
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR13-Series_and_SW05_for_Heat_Resistant_Alloys_W.pdf
