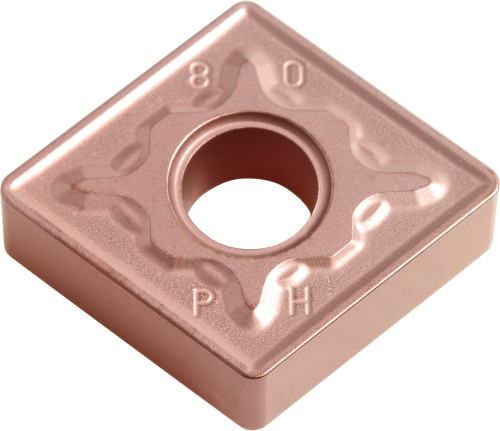

Kyocera Turning Insert CNMG544PH CA310: TMC01063

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC01063
$30.56

Kyocera Turning Insert CNMG544PH CA310, manufacturer part number TMC01063.

Specifications: IC Size: 5/8 in (15.875 mm); Insert Thickness: 1/4 in (6.35 mm); Corner Radius: 1/16 in (1.60 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8848269; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Roughing; Usage Classification: Continuous; Insert Size: 544; Hand Direction: Neutral; Insert Style: CNMG; Insert Shape: 80 Degree Diamond; ANSI Designation: CNMG544PHCA310; Chip Breaker Type: PH; ISO Designation: CNMG160616PH; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CA310; Workpiece Material: Cast Iron; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/Ti. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Metric)
6.35
Corner Radius (Fractional)
1/16
Included Angle
80
ANSI Designation
CNMG544PHCA310
Insert Style
CNMG
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
544
Old Material Number
8848269
Insert Grade
CA310
Workpiece Material
Cast Iron
Rake
Negative
Insert Thickness (Fractional)
1/4
Corner Radius (Metric)
1.60
Number of Cutting Edges
4
Coating Process
CVD
IC Size (Fractional)
5/8
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Metric)
15.875
Chip Breaker Type
PH
ISO Designation
CNMG160616PH
Pack quantity
10
