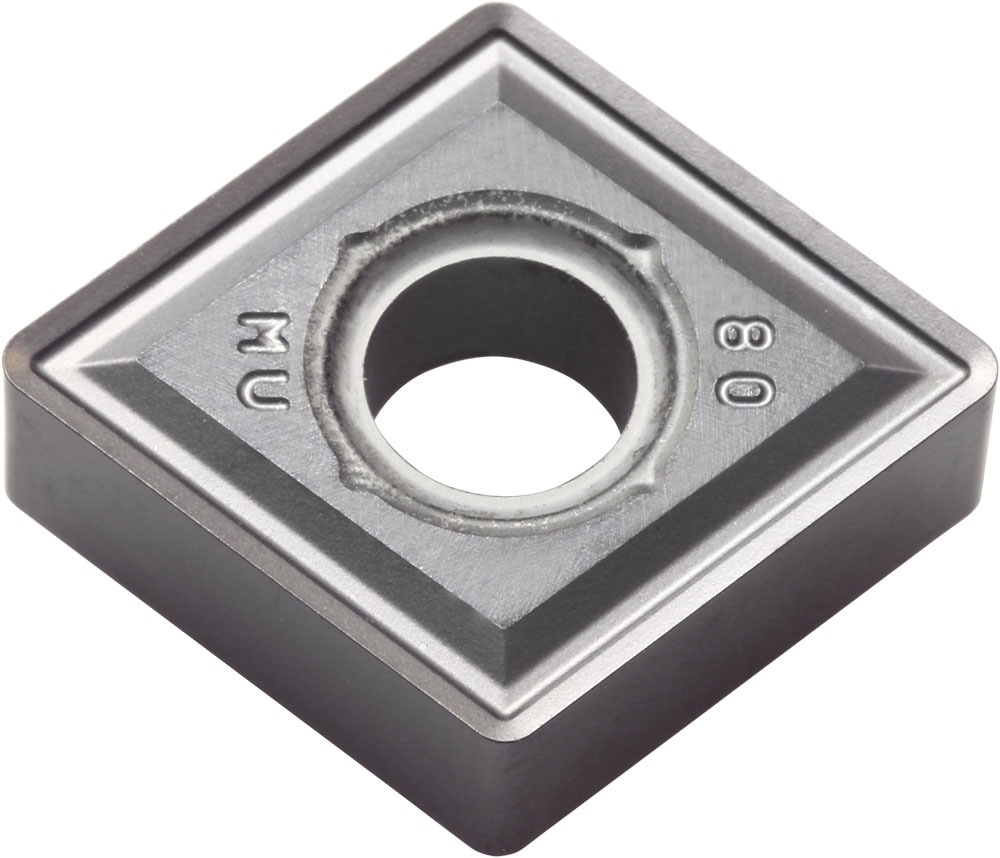

Kyocera CNMG 643MU PR120S Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLW00026
$41.99
Kyocera CNMG 643MU PR120S Grade PVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Medium-Roughing in (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(S) Heat-Resistant Alloy
Corner Radius
3/64 Inch
Included Angle
80 degrees
Thickness
1/4 Inch
Style
CNMG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
643
ANSI Part Number
CNMG643MUPR120S
ISO Part Number
CNMG190612MU
Rake
Negative
Material Group / Grade
PR120S
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Thickness (Metric)
6.35
Chipbreaker
MU
Cutting Range
Medium-Roughing
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
19.05
Inscribed Circle
3/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PR115S_PR120S_PVD_Coated_Carbide.pdf
