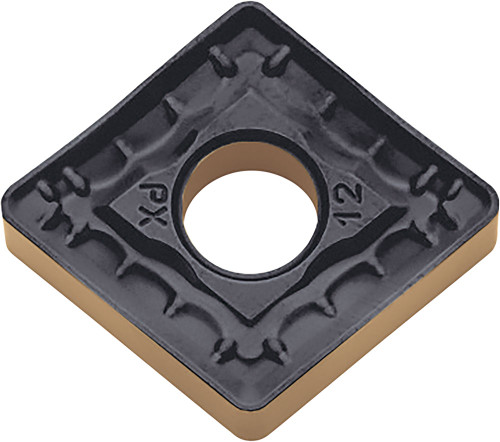

Kyocera Turning Insert CNMM433PX CA125P: TMK00109

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00109
$26.03

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, 80 degree diamond shape, negative rake, 2 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMK00109.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
3/64
Included Angle
80
ANSI Designation
CNMM433PXCA125P
Insert Style
CNMM
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
433
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CA125P
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.20
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
CNMM120412PX
Cutting Range
Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
PX
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
