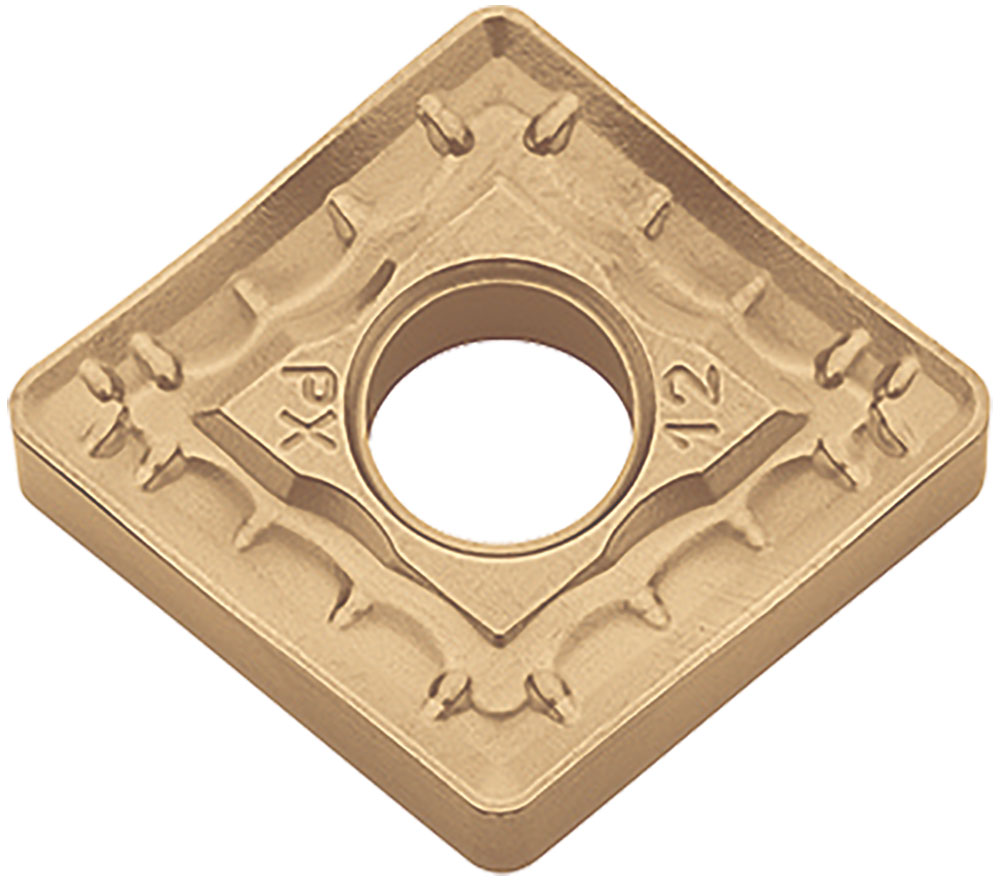

Kyocera CNMM 646PX CA125P Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00117
$44.26
Kyocera CNMM 646PX CA125P Grade CVD Carbide, 80 Degree Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Roughing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
3/32 Inch
Included Angle
80 degrees
Thickness
1/4 Inch
Style
CNMM
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
646
ANSI Part Number
CNMM646PXCA125P
ISO Part Number
CNMM190624PX
Rake
Negative
Material Group / Grade
CA125P
Corner Radius (Metric)
2.40
Number of Cutting Edges
2
Thickness (Metric)
6.35
Chipbreaker
PX
Cutting Range
Roughing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
19.05
Inscribed Circle
3/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
Kyocera CNMM 646PX CA125P Grade CVD Carbide, Indexable Turning Insert
$44.26
