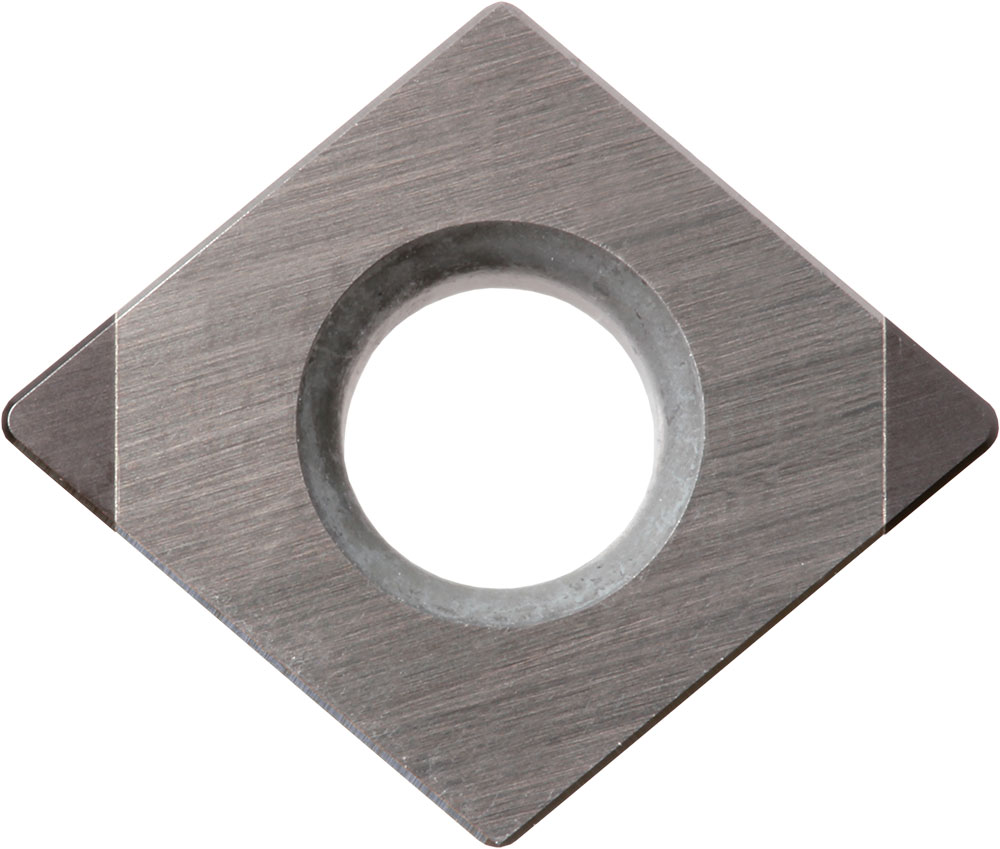

Kyocera Turning Insert CPGB25151S00435MET KBN525: TBW01810

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBW01810
$92.61

Kyocera ISOI turning insert for hardened steel, 5/16 in (7.94 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. CBN, uncoated. Manufacturer part number TBW01810.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
Uncoated
Insert Thickness (Metric)
2.38
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CPGB25151S00435METKBN525
Insert Style
CPGB
Machining Operations
Boring, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
25151
IC Size (Metric)
7.94
Insert Grade
KBN525
Rake
Positive
Insert Thickness (Fractional)
3/32
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Workpiece Material
Hardened Steel
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
5/16
ISO Designation
CPGB080204S01035MET
