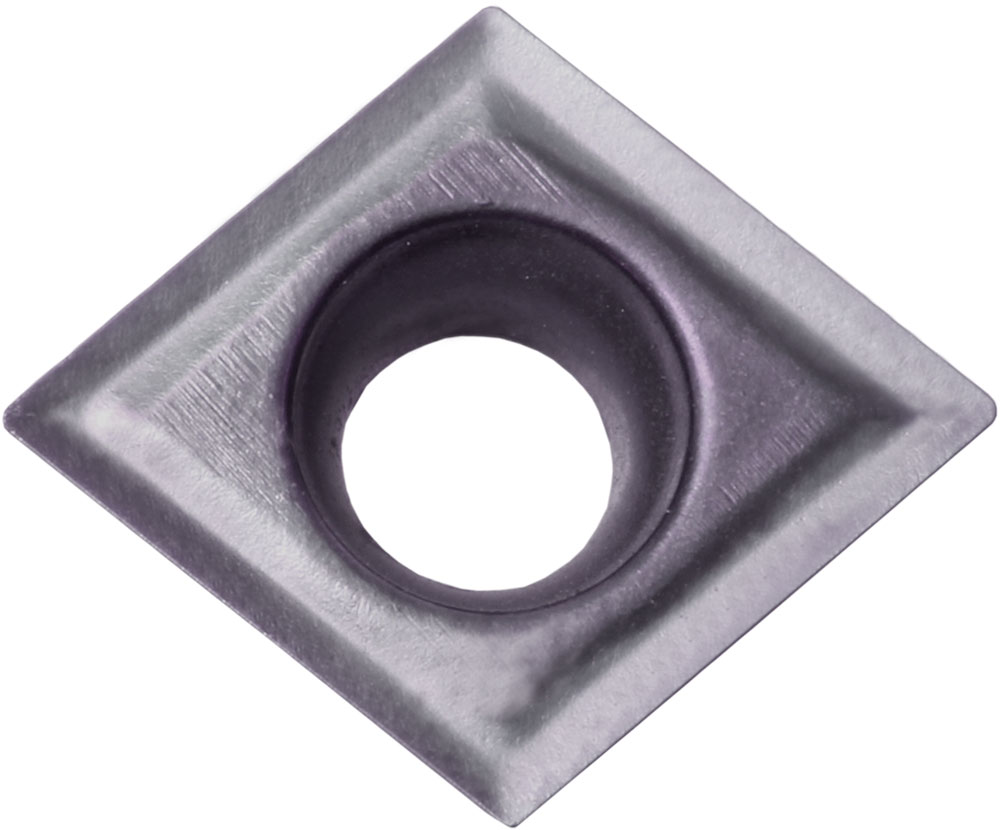

Kyocera CPGT 3251 PR930 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8804735
$32.99
Kyocera CPGT 3251 PR930 Grade PVD Carbide, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (P) Carbon/Alloy Steel and (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
5/32 Inch
Style
CPGT
Application
Boring, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3251
Old Material Number
8804735
ANSI Part Number
CPGT3251PR930
ISO Part Number
CPGT32.51
Rake
Positive
Material Group / Grade
PR930
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
3.97
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
Kyocera CPGT 3251 PR930 Grade PVD Carbide, Indexable Turning Insert
$32.99
