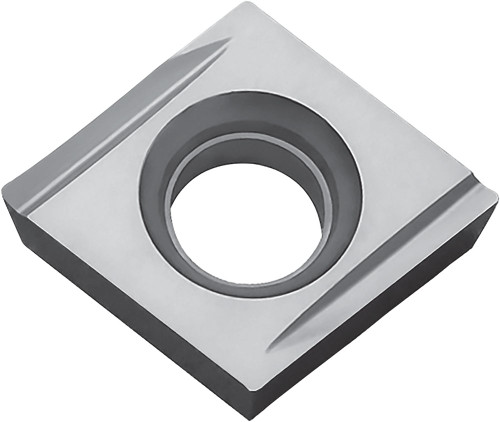

Kyocera CPMH 25151LY TN610 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS02220
$12.31
Kyocera CPMH 25151LY TN610 Grade Uncoated Cermet, 11 Degree, Diamond, Positive Rake Angle, Left-Hand Turning Insert for Continuous and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
3/32 Inch
Style
CPMH
Application
Boring, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
25151
Old Material Number
8847776
ANSI Part Number
CPMH25151LYTN610
ISO Part Number
CPMH080204L-Y
Rake
Positive
Material Group / Grade
TN610
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
Y
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
7.94
Inscribed Circle
5/16 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera CPMH 25151LY TN610 Grade Uncoated Cermet, Indexable Turning Insert
$12.31
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
