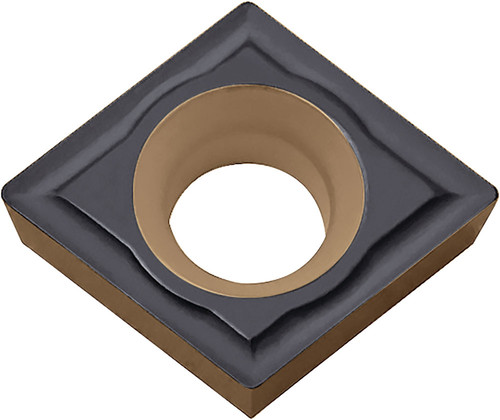

Kyocera Turning Insert CPMH25152 CA115P: TML00340

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00340
$18.48

Kyocera ISOI turning insert for steel, 5/16 in (7.94 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TML00340.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CPMH25152CA115P
Insert Style
CPMH
Insert Thickness (Metric)
2.38
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
25152
Machining Operations
Boring, Internal Facing
Insert Grade
CA115P
Rake
Positive
IC Size (Metric)
7.94
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Workpiece Material
Steel
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
5/16
Coating Process
CVD
ISO Designation
CPMH080208
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
