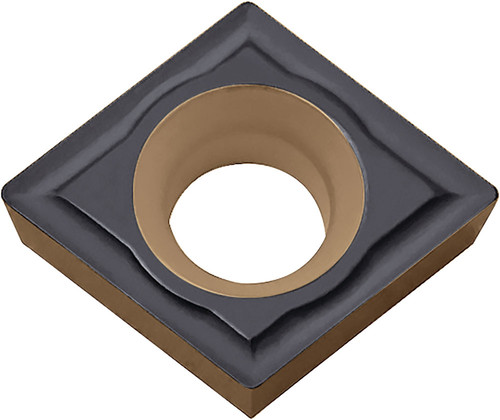

Kyocera Turning Insert CPMH25152 CA125P: TMK00340

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00340
$18.48

Kyocera Turning Insert CPMH25152 CA125P, manufacturer part number TMK00340.

Specifications: IC Size: 5/16 in (7.94 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 25152; Hand Direction: Neutral; Insert Style: CPMH; Insert Shape: 80 Degree Diamond; ANSI Designation: CPMH25152CA125P; ISO Designation: CPMH080208; Included Angle: 80 degrees; Machining Operations: Boring, Internal Facing; Insert Grade: CA125P; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CPMH25152CA125P
Insert Style
CPMH
Insert Thickness (Metric)
2.38
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
25152
Machining Operations
Boring, Internal Facing
Insert Grade
CA125P
Rake
Positive
IC Size (Metric)
7.94
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Workpiece Material
Steel
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
5/16
Coating Process
CVD
ISO Designation
CPMH080208
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
