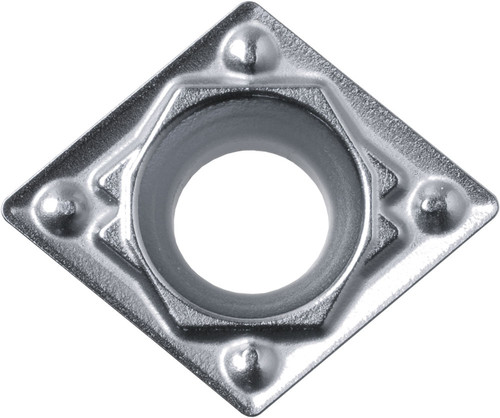

Kyocera CPMH 321HQ TN620 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR02215
$16.24
Kyocera CPMH 321HQ TN620 Grade Uncoated Cermet, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
1/8 Inch
Style
CPMH
Application
Boring, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
321
Old Material Number
8842757
ANSI Part Number
CPMH321HQTN620
ISO Part Number
CPMH090304HQ
Rake
Positive
Material Group / Grade
TN620
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
3.18
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
