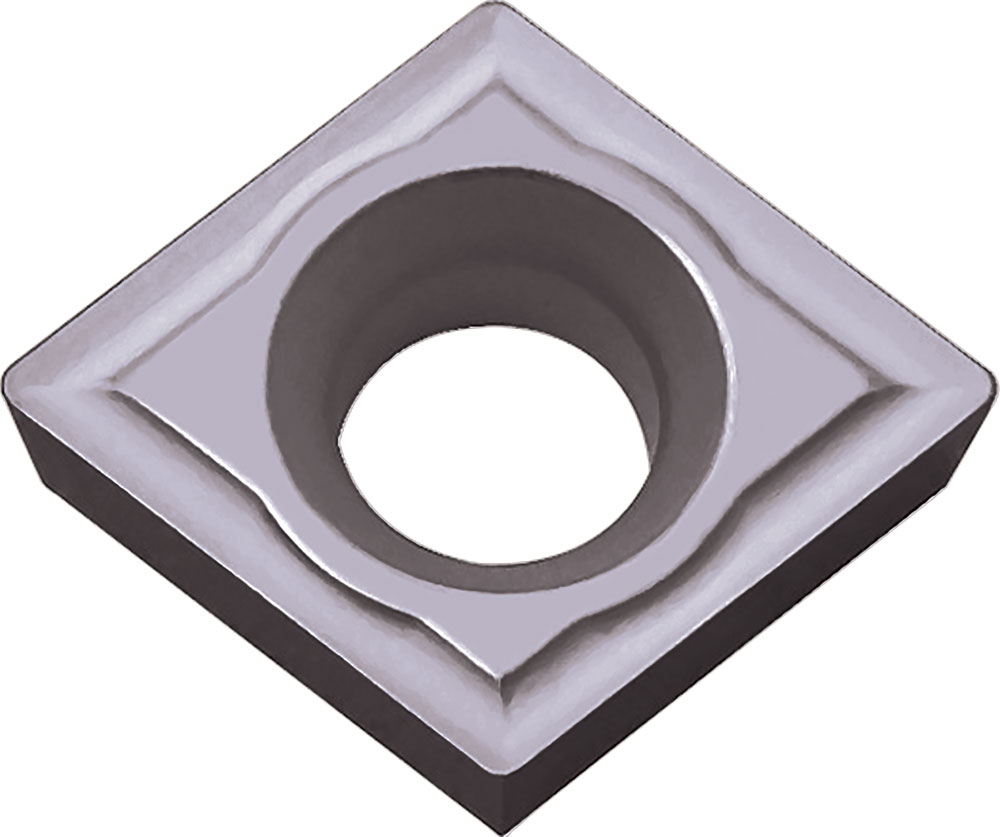

Kyocera CPMH 322 PR1535 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC02206
$22.65
Kyocera CPMH 322 PR1535 Grade PVD Carbide, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Corner Radius
1/32 Inch
Included Angle
80 degrees
Thickness
1/8 Inch
Style
CPMH
Application
Boring, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
322
Old Material Number
8846155
ANSI Part Number
CPMH322PR1535
ISO Part Number
CPMH090308
Rake
Positive
Material Group / Grade
PR1535
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Thickness (Metric)
3.18
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
