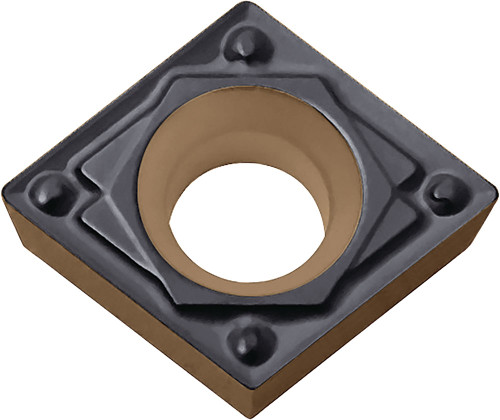

Kyocera Turning Insert CPMH322HQ CA115P: TML00338

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00338
$20.76

Kyocera Turning Insert CPMH322HQ CA115P, manufacturer part number TML00338.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 322; Hand Direction: Neutral; Insert Style: CPMH; Insert Shape: 80 Degree Diamond; ANSI Designation: CPMH322HQCA115P; Chip Breaker Type: HQ; ISO Designation: CPMH090308HQ; Included Angle: 80 degrees; Machining Operations: Boring, Internal Facing; Insert Grade: CA115P; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CPMH322HQCA115P
Insert Style
CPMH
Machining Operations
Boring, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
322
Insert Grade
CA115P
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
HQ
ISO Designation
CPMH090308HQ
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
