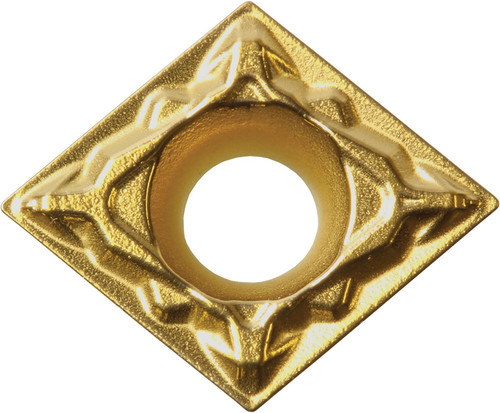

Kyocera CPMT 251505PP PV730 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00104
$16.17
Kyocera CPMT251505PP PV730 Grade PVD Cermet, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Heavy Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
80 degrees
Thickness
3/32 Inch
Style
CPMT
Application
Boring, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
251505
Old Material Number
8865867
ANSI Part Number
CPMT251505PPPV730
ISO Part Number
CPMT080202PP
Rake
Positive
Material Group / Grade
PV730
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
PP
Cutting Range
Finishing
Usage Classification
Heavy Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
7.94
Inscribed Circle
5/16 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
