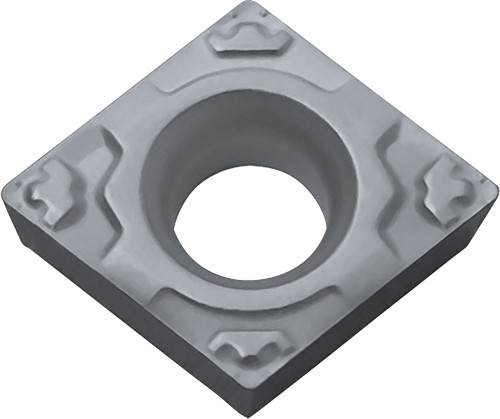

Kyocera Turning Insert CPMT25151GP TN610: TSS02240

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS02240
$12.31

Kyocera ISOI turning insert for steel, 5/16 in (7.94 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Cermet, uncoated. Manufacturer part number TSS02240.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CPMT25151GPTN610
Insert Style
CPMT
Insert Thickness (Metric)
2.38
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
25151
Machining Operations
Boring, Internal Facing
Insert Grade
TN610
Rake
Positive
IC Size (Metric)
7.94
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
CPMT080204GP
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Fractional)
5/16
Chip Breaker Type
GP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
