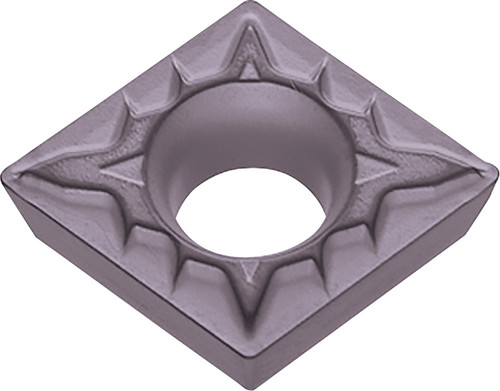

Kyocera CPMT 25151XP PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00124
$22.17
Kyocera CPMT 25151XP PR1725 Grade PVD Carbide, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (P) Free-Cutting Steel, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
3/32 Inch
Style
CPMT
Application
Boring, Internal Facing
Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
25151
Old Material Number
8863377
ANSI Part Number
CPMT25151XPPR1725
ISO Part Number
CPMT080204XP
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
XP
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
7.94
Inscribed Circle
5/16 Inch
Pack quantity
10
