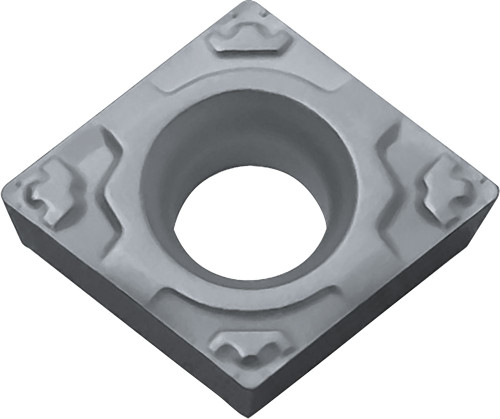

Kyocera Turning Insert CPMT321GP TN60: TSJ00406

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ00406
$16.24

Kyocera Turning Insert CPMT321GP TN60, manufacturer part number TSJ00406.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8800763; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 321; Hand Direction: Neutral; Insert Style: CPMT; Insert Shape: 80 Degree Diamond; ANSI Designation: CPMT321GPTN60; Chip Breaker Type: GP; ISO Designation: CPMT090304GP; Included Angle: 80 degrees; Machining Operations: Boring, Internal Facing; Insert Grade: TN60; Workpiece Material: Steel.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CPMT321GPTN60
Insert Style
CPMT
Machining Operations
Boring, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
321
Old Material Number
8800763
Insert Grade
TN60
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
GP
ISO Designation
CPMT090304GP
Pack quantity
10
Kyocera Turning Insert CPMT321GP TN60: TSJ00406
$16.24
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
