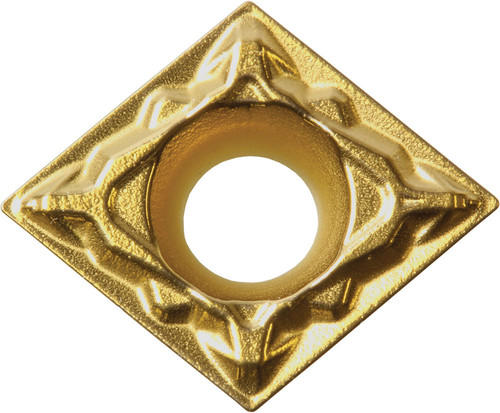

Kyocera Turning Insert CPMT321PP CA025P: TMH00395

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMH00395
$20.76

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMH00395.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CPMT321PPCA025P
Insert Style
CPMT
Machining Operations
Boring, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
321
Insert Grade
CA025P
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
PP
ISO Designation
CPMT090304PP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA025P_CVD_Coated_Carbide_for_Steel.pdf
