Kyocera Turning Insert CPMT321XQ TN610: TSS02265

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS02265
$15.48

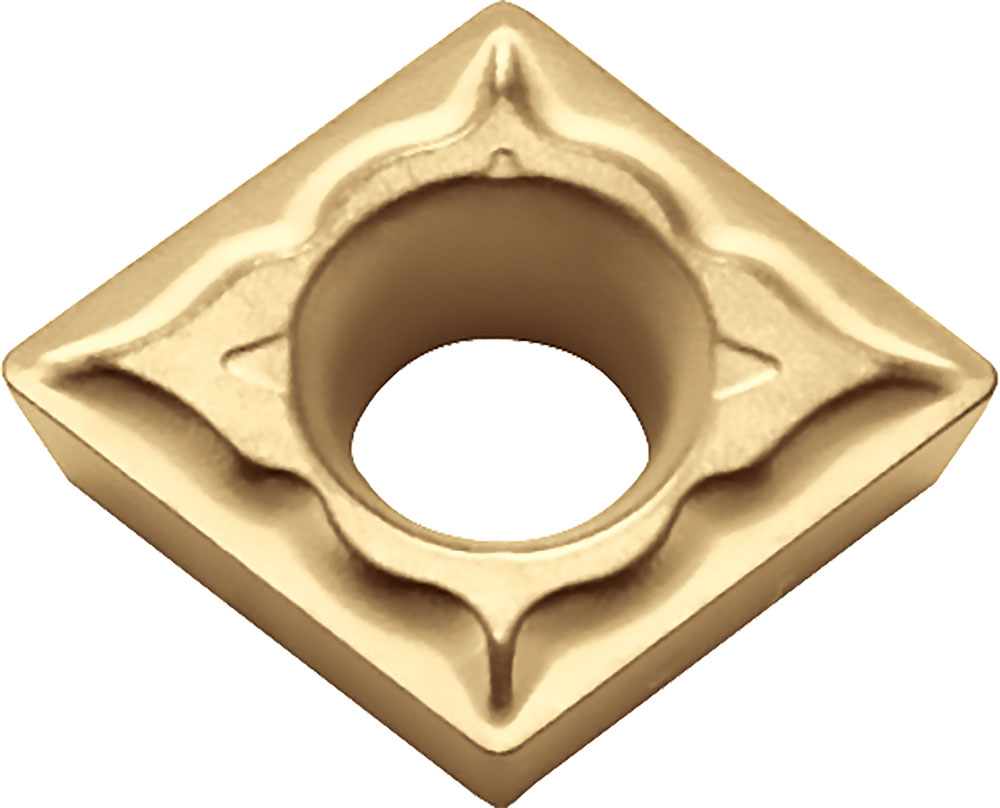

Kyocera Turning Insert CPMT321XQ TN610, manufacturer part number TSS02265.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8847002; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 321; Hand Direction: Neutral; Insert Style: CPMT; Insert Shape: 80 Degree Diamond; ANSI Designation: CPMT321XQTN610; Chip Breaker Type: XQ; ISO Designation: CPMT090304XQ; Included Angle: 80 degrees; Machining Operations: Boring, Internal Facing; Insert Grade: TN610; Workpiece Material: Steel.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
CPMT321XQTN610
Insert Style
CPMT
Machining Operations
Boring, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
321
Old Material Number
8847002
Insert Grade
TN610
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
XQ
ISO Designation
CPMT090304XQ
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
