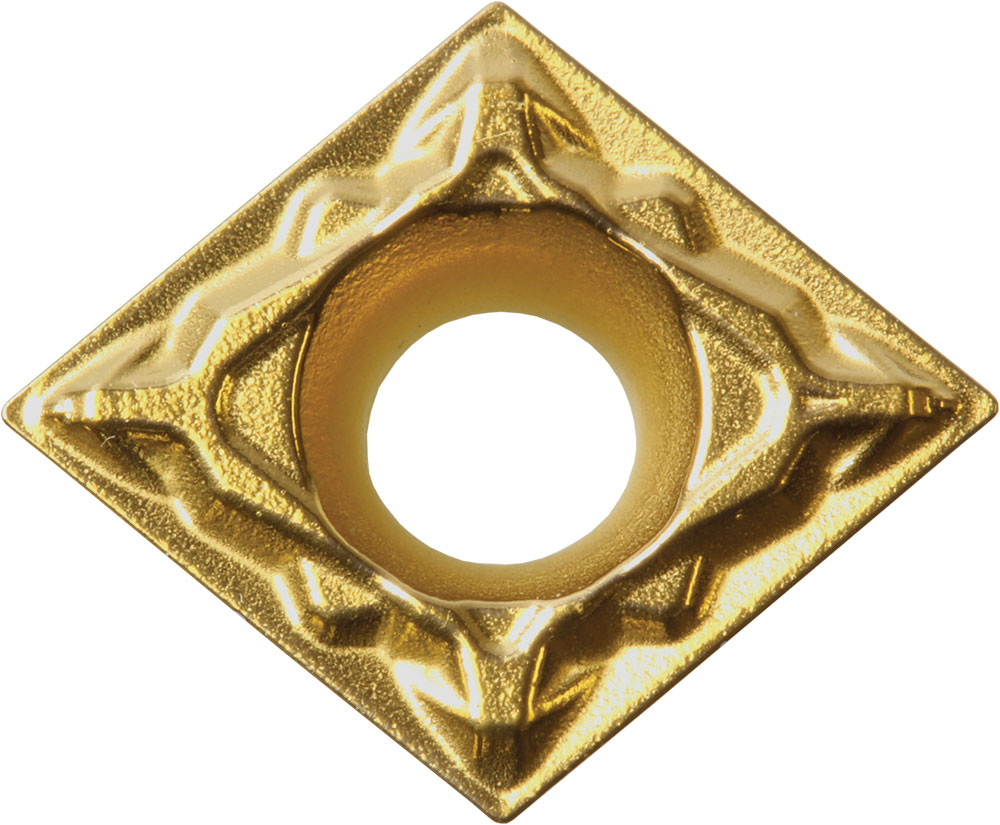

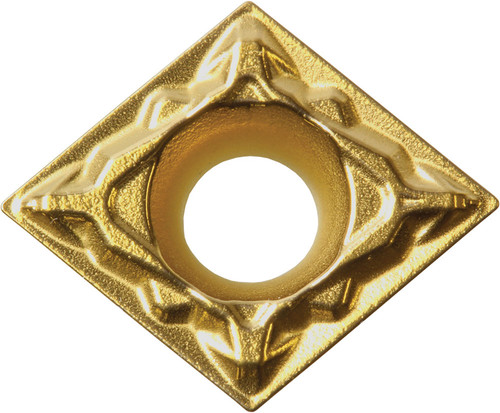

Kyocera Turning Insert CPMT322PP PV730: TLP00124

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00124
$20.28

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 80 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Cermet, TiAlN/TiN (PVD) coating. Manufacturer part number TLP00124.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiAlN/TiN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
CPMT322PPPV730
Insert Style
CPMT
Machining Operations
Boring, Internal Facing
Insert Shape
80 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
322
Insert Grade
PV730
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
Coating Process
PVD
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous to Heavy Interruption
IC Size (Metric)
9.525
Chip Breaker Type
PP
ISO Designation
CPMT090308PP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
