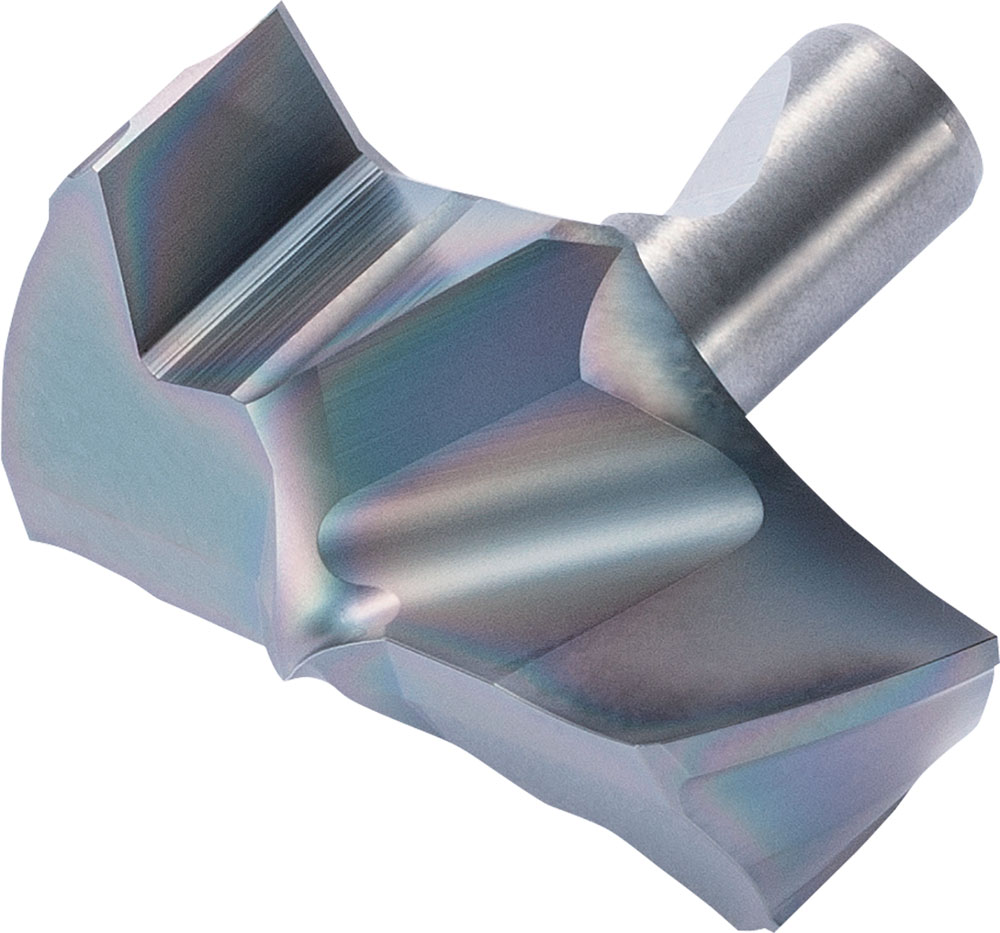

Kyocera DA 0830MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB10105
$171.94
Kyocera DA 0830MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip with a 0.3268" (8.30mm) Cutting Diameter, Flat Bottom / Counterboring, Right-Hand Drilling Insert for (K) Cast Iron (DRA Magic Drill Series)

Specifications

Series
DRA
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Cast Iron
Cutting Diameter
0.33 Inch
Grade
PR1525
Application
Drilling
Insert Holding Method
Screw
Old Material Number
8858843
ANSI Part Number
DA0830MFTPPR1525
ISO Part Number
DA0830M-FTP
Tool Style
DA
Number of Cutting Edges
2
Cutting Diameter (Decimal)
0.33
Cutting Diameter (Metric)
8.30
Cutting Diameter Minimum (Decimal)
0.33
Cutting Diameter Minimum (Metric)
8.30
Cutting Diameter Maximum (Decimal)
0.33
Cutting Diameter Maximum (Metric)
8.30
Insert Size
0830
Chipbreaker
FTP
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
