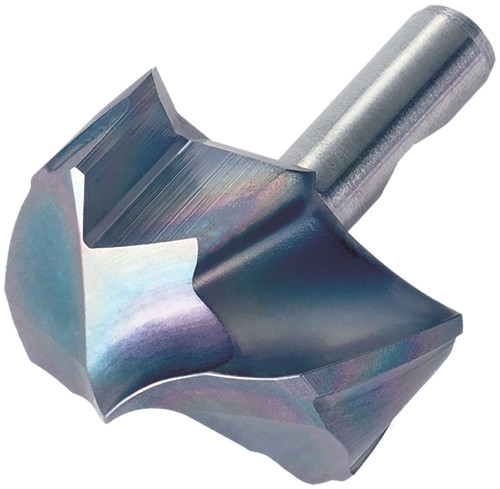

Kyocera DA 1080MHQS PR1535 Grade PVD Carbide, Replaceable Drill Tip

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC40184
$228.27
Kyocera DA 1080MHQS PR1535 Grade PVD Carbide, Replaceable Drill Tip with a 0.4252" (10.80mm) Cutting Diameter, Right-Hand Drilling Insert for Stainless and Difficult-to-cut Materials

Specifications

Series
DRA
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Cutting Diameter
0.43 Inch
Grade
PR1535
Application
Drilling
Insert Holding Method
Screw
Old Material Number
8868122
ANSI Part Number
DA1080MHQSPR1535
ISO Part Number
DA1080M-HQS
Tool Style
DA
Number of Cutting Edges
2
Cutting Diameter (Decimal)
0.43
Cutting Diameter (Metric)
10.80
Cutting Diameter Minimum (Decimal)
0.43
Cutting Diameter Minimum (Metric)
10.80
Cutting Diameter Maximum (Decimal)
0.43
Cutting Diameter Maximum (Metric)
10.80
Insert Size
1080
Chipbreaker
HQS
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Kyocera DA 1080MHQS PR1535 Grade PVD Carbide, Replaceable Drill Tip
$228.27
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
