Kyocera DA 1150MFTP PR1535 Grade PVD Carbide, Replaceable Drill Tip

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC10160
$181.63

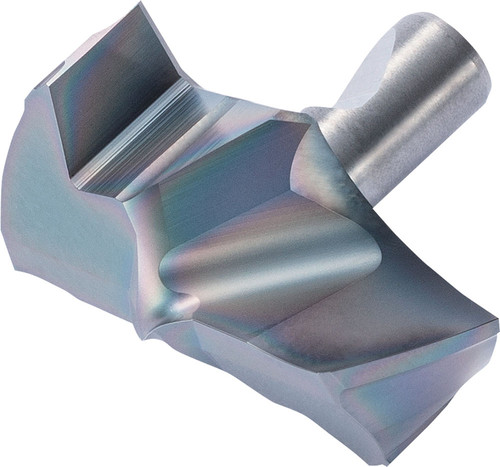

Kyocera DA 1150MFTP PR1535 Grade PVD Carbide, Replaceable Drill Tip with a 0.4528" (11.50mm) Cutting Diameter, Flat Bottom / Counterboring, Right-Hand Drilling Insert for (P) Steel and (M) Stainless Steel (DRA Magic Drill Series)

Specifications

Series
DRA
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel|(M) Stainless Steel
Cutting Diameter
0.45 Inch
Grade
PR1535
Application
Drilling
Insert Holding Method
Screw
Old Material Number
8858896
ANSI Part Number
DA1150MFTPPR1535
ISO Part Number
DA1150M-FTP
Tool Style
DA
Number of Cutting Edges
2
Cutting Diameter (Decimal)
0.45
Cutting Diameter (Metric)
11.50
Cutting Diameter Minimum (Decimal)
0.45
Cutting Diameter Minimum (Metric)
11.50
Cutting Diameter Maximum (Decimal)
0.45
Cutting Diameter Maximum (Metric)
11.50
Insert Size
1150
Chipbreaker
FTP
