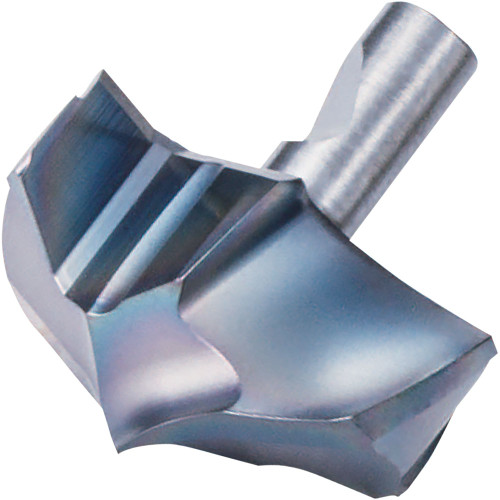

Kyocera DA 1300MHQP PR1525 Grade PVD Carbide, Replaceable Drill Tip

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB40062
$243.49
Kyocera DA 1300MHQP PR1525 Grade PVD Carbide, Replaceable Drill Tip with a 0.5118" (13.00mm) Cutting Diameter, High-precision, Right-Hand Drilling Insert for (P) Steel (DRA Magic Drill Series)

Specifications

Series
DRA
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Cutting Diameter
0.51 Inch
Grade
PR1525
Application
Drilling
Insert Holding Method
Screw
Old Material Number
8866988
ANSI Part Number
DA1300MHQPPR1525
ISO Part Number
DA1300M-HQP
Tool Style
DA
Number of Cutting Edges
2
Cutting Diameter (Decimal)
0.51
Cutting Diameter (Metric)
13
Cutting Diameter Minimum (Decimal)
0.51
Cutting Diameter Minimum (Metric)
13
Cutting Diameter Maximum (Decimal)
0.51
Cutting Diameter Maximum (Metric)
13
Insert Size
1300
Chipbreaker
HQP
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
