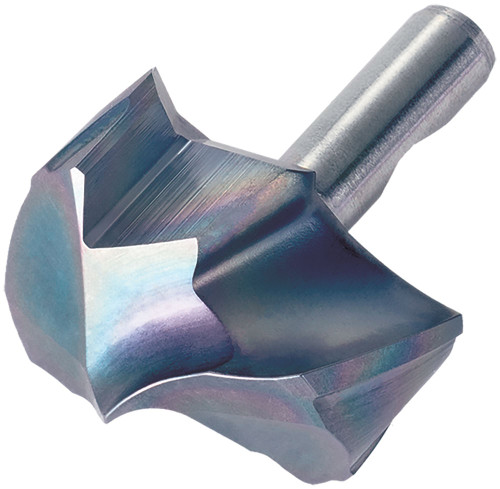

Kyocera Replaceable Drill Tip DA1750MHQS PR1535: TLC40207

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC40207
$304.35

Kyocera Replaceable Drill Tip DA1750MHQS PR1535, manufacturer part number TLC40207.

Specifications: Cutting Diameter: 17.50 mm (0.6890 in); Insert Holding Method: Screw; Old Material Number: 8868154; Number of Cutting Edges: 2; Cutting Diameter Minimum: 17.50 mm (0.6890 in); Cutting Diameter Maximum: 17.50 mm (0.6890 in); Insert Size: 1750; Hand Direction: Right; Insert Style: DA; ANSI Designation: DA1750MHQSPR1535; Chip Breaker Type: HQS; ISO Designation: DA1750M-HQS; Machining Operations: Drilling; Insert Grade: PR1535; Workpiece Material: Stainless Steel, High-Temp Alloy; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO. Series: DRA. Unit of measure: Metric.

Specifications

Series
DRA
Unit of Measure
Metric
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT NANO
ANSI Designation
DA1750MHQSPR1535
Chip Breaker Type
HQS
ISO Designation
DA1750M-HQS
Machining Operations
Drilling
Insert Holding Method
Screw
Old Material Number
8868154
Insert Grade
PR1535
Workpiece Material
Stainless Steel, High-Temp Alloy
Insert Style
DA
Number of Cutting Edges
2
Cutting Diameter (Decimal)
0.6890
Cutting Diameter (Metric)
17.50
Cutting Diameter Minimum (Decimal)
0.6890
Cutting Diameter Minimum (Metric)
17.50
Cutting Diameter Maximum (Decimal)
0.6890
Cutting Diameter Maximum (Metric)
17.50
Insert Size
1750
Size System
Metric
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Coating Process
PVD
