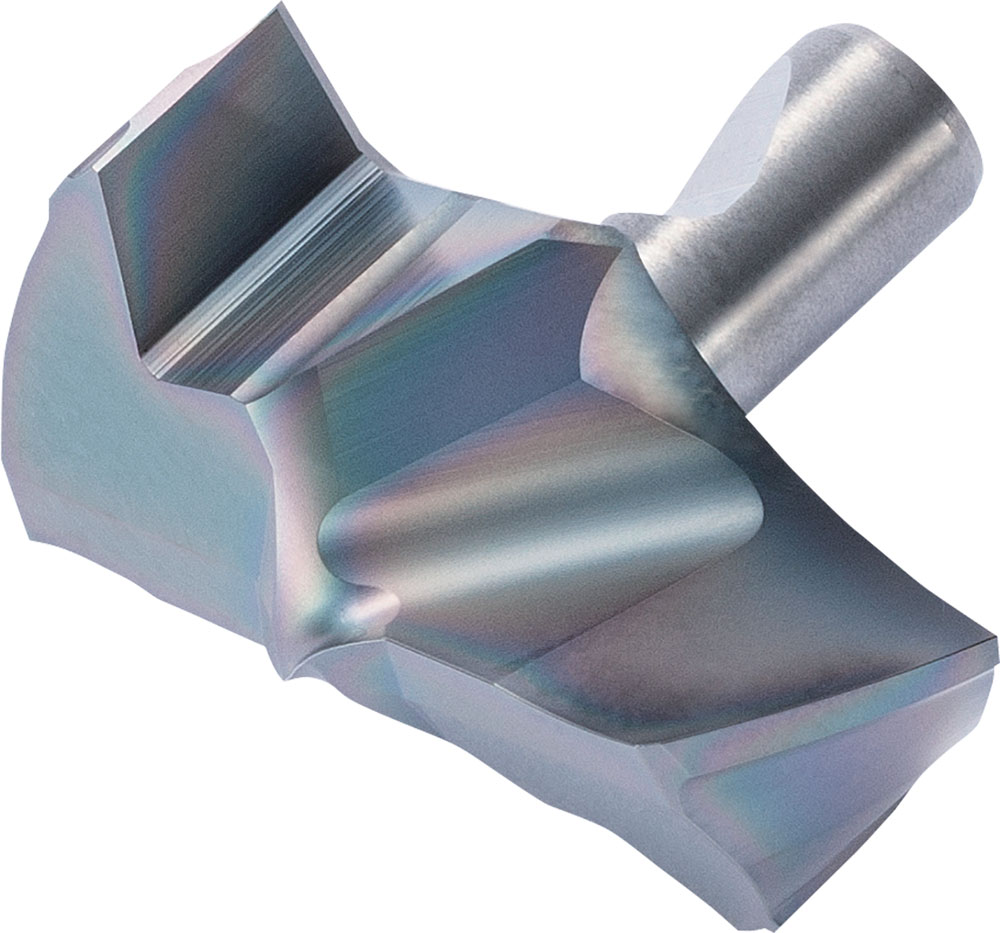

Kyocera DA 2050MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB10255
$324.49
Kyocera DA 2050MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip with a 0.8071" (20.50mm) Cutting Diameter, Flat Bottom / Counterboring, Right-Hand Drilling Insert for (K) Cast Iron (DRA Magic Drill Series)

Specifications

Series
DRA
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Cast Iron
Cutting Diameter
0.81 Inch
Grade
PR1525
Application
Drilling
Insert Holding Method
Screw
Old Material Number
8858873
ANSI Part Number
DA2050MFTPPR1525
ISO Part Number
DA2050M-FTP
Tool Style
DA
Number of Cutting Edges
2
Cutting Diameter (Decimal)
0.81
Cutting Diameter (Metric)
20.50
Cutting Diameter Minimum (Decimal)
0.81
Cutting Diameter Minimum (Metric)
20.50
Cutting Diameter Maximum (Decimal)
0.81
Cutting Diameter Maximum (Metric)
20.50
Insert Size
2050
Chipbreaker
FTP
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Kyocera DA 2050MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip
$324.49
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
