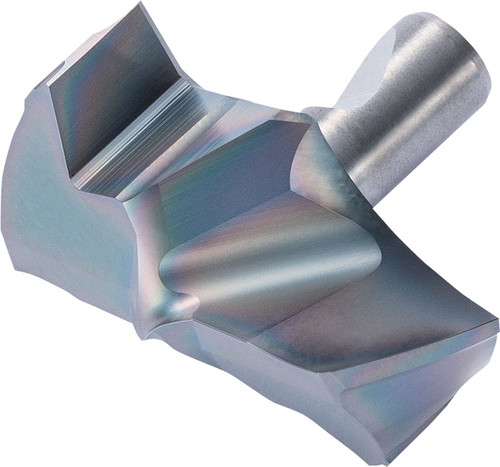

Kyocera Replaceable Drill Tip DA2200MFTP PR1525: TLB10270

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB10270
$348.69

Kyocera Replaceable Drill Tip DA2200MFTP PR1525, manufacturer part number TLB10270.

Specifications: Cutting Diameter: 22.00 mm (0.8661 in); Insert Holding Method: Screw; Old Material Number: 8858876; Number of Cutting Edges: 2; Cutting Diameter Minimum: 22.00 mm (0.8661 in); Cutting Diameter Maximum: 22.00 mm (0.8661 in); Insert Size: 2200; Hand Direction: Right; Insert Style: DA; ANSI Designation: DA2200MFTPPR1525; Chip Breaker Type: FTP; ISO Designation: DA2200M-FTP; Machining Operations: Drilling; Insert Grade: PR1525; Workpiece Material: Cast Iron, Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO. Series: DRA. Unit of measure: Metric.

Specifications

Series
DRA
Unit of Measure
Metric
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT NANO
Chip Breaker Type
FTP
ANSI Designation
DA2200MFTPPR1525
ISO Designation
DA2200M-FTP
Machining Operations
Drilling
Insert Holding Method
Screw
Old Material Number
8858876
Insert Grade
PR1525
Workpiece Material
Cast Iron, Steel, Stainless Steel
Insert Style
DA
Number of Cutting Edges
2
Cutting Diameter (Decimal)
0.8661
Cutting Diameter (Metric)
22.00
Cutting Diameter Minimum (Decimal)
0.8661
Cutting Diameter Minimum (Metric)
22.00
Cutting Diameter Maximum (Decimal)
0.8661
Cutting Diameter Maximum (Metric)
22.00
Insert Size
2200
Size System
Metric
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Coating Process
PVD
