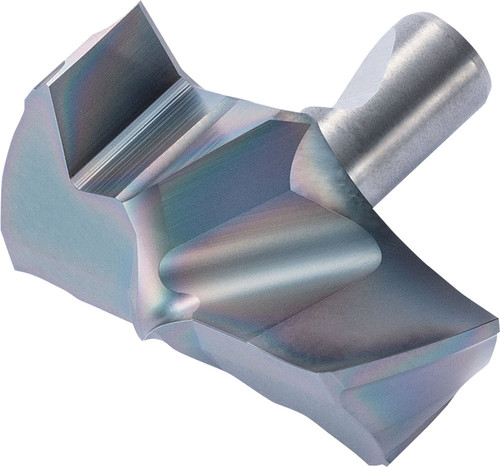

Kyocera DA 2540MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB10305
$377.78
Kyocera DA 2540MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip with a 1.0000" (25.40mm) Cutting Diameter, Flat Bottom / Counterboring, Right-Hand Drilling Insert for (K) Cast Iron (DRA Magic Drill Series)

Specifications

Series
DRA
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Cast Iron
Cutting Diameter
1 Inch
Grade
PR1525
Application
Drilling
Insert Holding Method
Screw
Old Material Number
8858883
ANSI Part Number
DA2540MFTPPR1525
ISO Part Number
DA2540M-FTP
Tool Style
DA
Number of Cutting Edges
2
Cutting Diameter (Decimal)
1
Cutting Diameter (Metric)
25.40
Cutting Diameter Minimum (Decimal)
1
Cutting Diameter Minimum (Metric)
25.40
Cutting Diameter Maximum (Decimal)
1
Cutting Diameter Maximum (Metric)
25.40
Insert Size
2540
Chipbreaker
FTP
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Kyocera DA 2540MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip
$377.78
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
