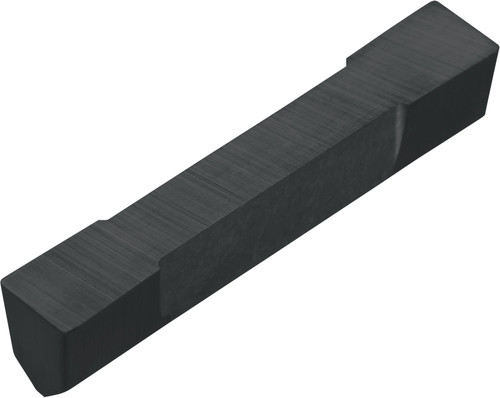

Kyocera DB 187FNRT00420 A65 Grade Uncoated Ceramic, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TCR89059
$90.81
Kyocera DB 187FNRT00420 A65 Grade Uncoated Ceramic, 0.1874" Groove Width, Right-Hand Grooving Insert for Continuous and Finishing in (K) Cast Iron and (H) Hardened Materials

Specifications

Series
KDB
Unit of Measure
Imperial
Material
Ceramic
Coating/Finish
Uncoated
Primary Workpiece Material
(K) Cast Iron
Corner Radius (Metric)
2.38
Grade
A65
Cutting Width
0.19 Inch
Thickness (Metric)
6.35
Cutting Width (Metric)
4.76
Style
DB
Application
External Grooving
Chip Breaker Type
FNR
Thickness (Fractional)
1/4
Insert Holding Method
Clamp
Insert Length (Decimal)
1.13
Insert Length (Metric)
28.58
Size
187
Old Material Number
8800823
ANSI Part Number
DB187FNRT00420A65
ISO Part Number
DB187FNRT00420
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Right
Cutting Range
Finishing
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.09
Cutting Width Minimum (Decimal)
0.19
Cutting Width Minimum (Metric)
4.76
Cutting Width Maximum (Decimal)
0.19
Cutting Width Maximum (Metric)
4.76
Max Depth of Cut (Decimal)
0.75
Max Depth of Cut (Metric)
19
Pack quantity
10
Kyocera DB 187FNRT00420 A65 Grade Uncoated Ceramic, Indexable Grooving Insert
$90.81
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
