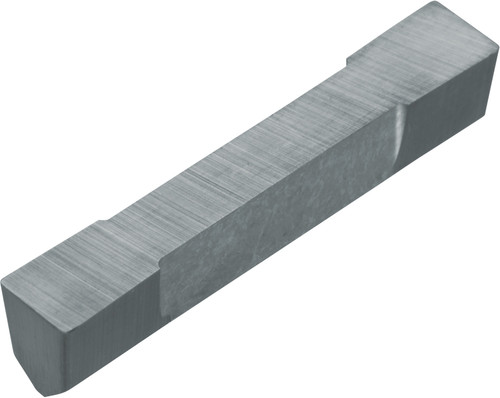

Kyocera DB 250R15 TN60 Grade Uncoated Cermet, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8864062
$46.71
Kyocera DB 250R15 TN60 Grade Uncoated Cermet, 0.2500" Groove Width, Right-Hand Grooving Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KDB
Unit of Measure
Imperial
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.38
Grade
TN60
Cutting Width
0.25 Inch
Thickness (Metric)
6.35
Cutting Width (Metric)
6.35
Style
DB
Application
External Grooving
Thickness (Fractional)
1/4
Insert Holding Method
Clamp
Insert Length (Decimal)
1.13
Insert Length (Metric)
28.58
Size
250
Old Material Number
8864062
ANSI Part Number
DB250R15TN60
ISO Part Number
DB250R15
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Right
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.02
Cutting Width Minimum (Decimal)
0.25
Cutting Width Minimum (Metric)
6.35
Cutting Width Maximum (Decimal)
0.25
Cutting Width Maximum (Metric)
6.35
Max Depth of Cut (Decimal)
0.75
Max Depth of Cut (Metric)
19
Pack quantity
10
Kyocera DB 250R15 TN60 Grade Uncoated Cermet, Indexable Grooving Insert
$46.71
