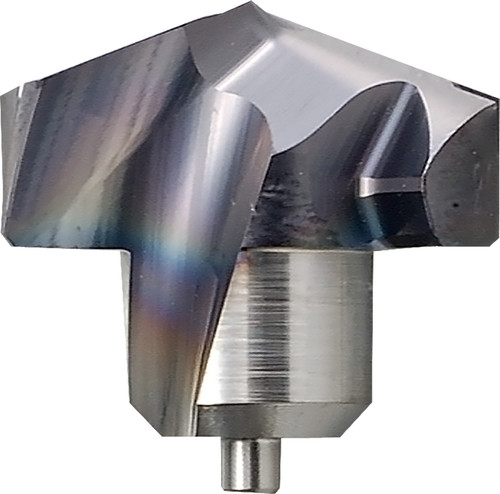

Kyocera DC 0980MSC PR0315 Grade PVD Carbide, Replaceable Drill Tip

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKK00836
$237.59
Kyocera DC 0980MSC PR0315 Grade PVD Carbide, Replaceable Drill Tip with a 0.3858" (9.80mm) Cutting Diameter, Right-Hand Drilling Insert for (P) Carbon/Alloy Steel and (K) Cast Iron (DRC Magic Drill Series)

Specifications

Series
DRC
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(K) Cast Iron
Cutting Diameter
0.39 Inch
Grade
PR0315
Application
Drilling
Insert Holding Method
Screw
Old Material Number
8826365
ANSI Part Number
DC0980MSCPR0315
ISO Part Number
DC0980M-SC
Tool Style
DC
Number of Cutting Edges
2
Cutting Diameter (Decimal)
0.39
Cutting Diameter (Metric)
9.80
Cutting Diameter Minimum (Decimal)
0.39
Cutting Diameter Minimum (Metric)
9.80
Cutting Diameter Maximum (Decimal)
0.39
Cutting Diameter Maximum (Metric)
9.80
Insert Size
0980
Chipbreaker
M-SC
Kyocera DC 0980MSC PR0315 Grade PVD Carbide, Replaceable Drill Tip
$237.59
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
