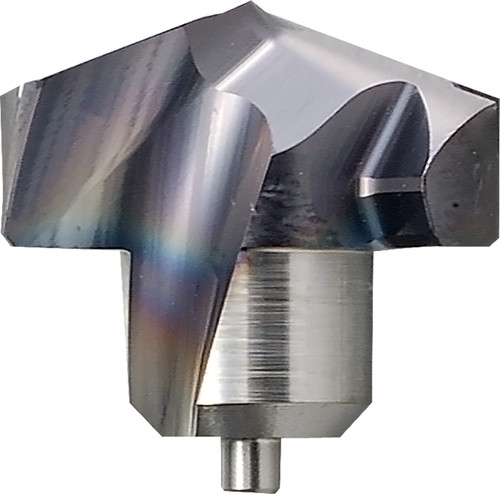

Kyocera Replaceable Drill Tip DC1270MSC PR0315: TKK00895

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKK00895
$269.21

Kyocera Replaceable Drill Tip DC1270MSC PR0315, manufacturer part number TKK00895.

Specifications: Cutting Diameter: 12.70 mm (0.5000 in); Insert Holding Method: Clamp; Old Material Number: 8827795; Number of Cutting Edges: 2; Cutting Diameter Minimum: 12.70 mm (0.5000 in); Cutting Diameter Maximum: 12.70 mm (0.5000 in); Insert Size: 1270; Hand Direction: Right; Insert Style: DC; ANSI Designation: DC1270MSCPR0315; Chip Breaker Type: M-SC; ISO Designation: DC1270M-SC; Machining Operations: Drilling; Insert Grade: PR0315; Workpiece Material: Steel, Cast Iron; Coating Process: PVD.

Material: Carbide. Coating/Finish: TiCN. Series: DRC. Unit of measure: Metric.

Specifications

Series
DRC
Unit of Measure
Metric
Hand Direction
Right
Material
Carbide
Coating/Finish
TiCN
ANSI Designation
DC1270MSCPR0315
Chip Breaker Type
M-SC
ISO Designation
DC1270M-SC
Machining Operations
Drilling
Insert Holding Method
Clamp
Old Material Number
8827795
Insert Grade
PR0315
Workpiece Material
Steel, Cast Iron
Insert Style
DC
Number of Cutting Edges
2
Cutting Diameter (Decimal)
0.5000
Cutting Diameter (Metric)
12.70
Cutting Diameter Minimum (Decimal)
0.5000
Cutting Diameter Minimum (Metric)
12.70
Cutting Diameter Maximum (Decimal)
0.5000
Cutting Diameter Maximum (Metric)
12.70
Insert Size
1270
Size System
Metric
Coating Process
PVD
