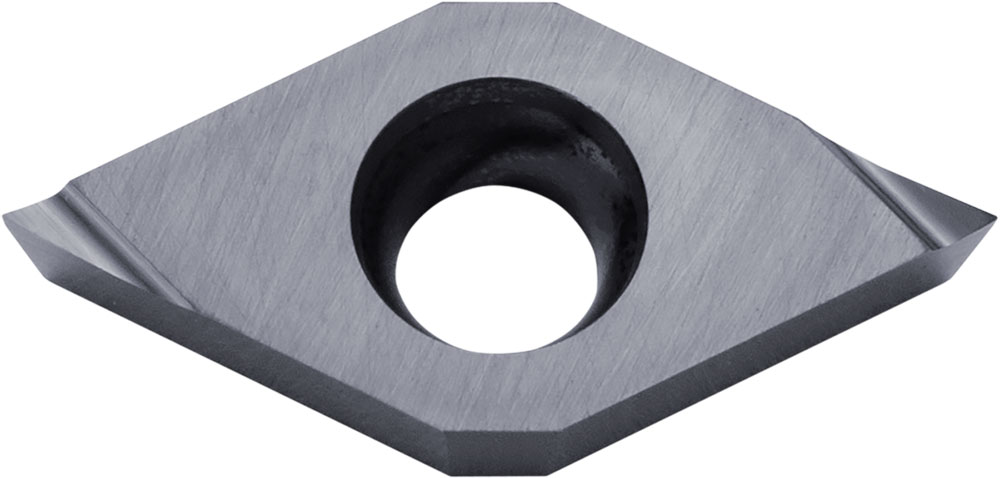

Kyocera Turning Insert DCET21502MRF PV720: TLD02800

Kyocera Turning Insert DCET21502MRF PV720, manufacturer part number TLD02800.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 0.0040 in (0.10 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8862570; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 21502; Hand Direction: Right; Insert Style: DCET; Insert Shape: 55 Degree Diamond; ANSI Designation: DCET21502MRFPV720; Chip Breaker Type: F; ISO Designation: DCET070201MR-F; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning, Sub-Spindle; Insert Grade: PV720; Workpiece Material: Steel; Coating Process: PVD.

Material: Cermet. Coating/Finish: TiCN (MEGACOAT NANO). Series: ISOI. Unit of measure: Inch.
