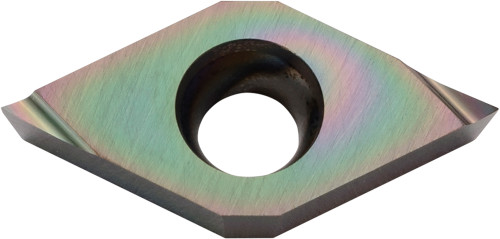

Kyocera Turning Insert DCET3251MRF PDL010: TLK03027

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLK03027
$37.11

Kyocera Turning Insert DCET3251MRF PDL010, manufacturer part number TLK03027.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8860798; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 3251; Hand Direction: Right; Insert Style: DCET; Insert Shape: 55 Degree Diamond; ANSI Designation: DCET3251MRFPDL010; Chip Breaker Type: F; ISO Designation: DCET11T304MR-F; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning, Sub-Spindle; Insert Grade: PDL010; Workpiece Material: Non-Ferrous.

Material: Carbide. Coating/Finish: DLC. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
DLC
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DCET3251MRFPDL010
Insert Style
DCET
Machining Operations
Back Boring, Copying, External Turning, Sub-Spindle
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3251
Old Material Number
8860798
Insert Grade
PDL010
Workpiece Material
Non-Ferrous
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
F
ISO Designation
DCET11T304MR-F
Pack quantity
10
