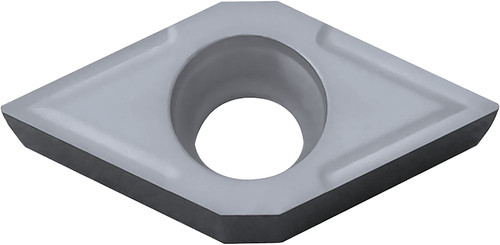

Kyocera Turning Insert DCGT215013M PR1725: TLM40025

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM40025
$26.00

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, medium cutting range, screw or clamp insert holding, neutral hand. Carbide, MEGACOAT NANO PLUS (PVD) coating. Manufacturer part number TLM40025.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
MEGACOAT NANO PLUS
IC Size (Metric)
6.35
Included Angle
55
Corner Radius (Decimal)
0.0020
Insert Style
DCGT
Insert Thickness (Fractional)
3/32
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
215013
Secondary Workpiece Material
Stainless Steel
Insert Thickness (Metric)
2.38
Machining Operations
Back Boring, Copying, External Turning, Sub-Spindle
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.05
Number of Cutting Edges
2
Insert Grade
PR1725
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
ISO Designation
DCGT0702005M
Workpiece Material
Steel
ANSI Designation
DCGT215013MPR1725
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PR1705.pdf
Coating Process
PVD
