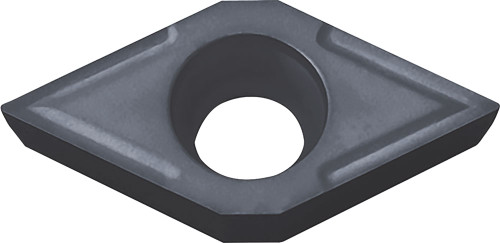

Kyocera Turning Insert DCGT215013MF PR1725: TLM00169

Kyocera Turning Insert DCGT215013MF PR1725, manufacturer part number TLM00169.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 0.0020 in (0.05 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8863421; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 215013; Hand Direction: Neutral; Insert Style: DCGT; Insert Shape: 55 Degree Diamond; ANSI Designation: DCGT215013MFPR1725; Chip Breaker Type: F; ISO Designation: DCGT0702005MF; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning, Sub-Spindle; Insert Grade: PR1725; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO PLUS. Series: ISOI. Unit of measure: Inch.
