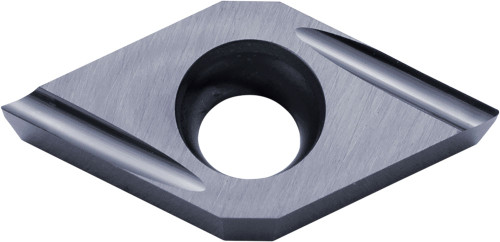

Kyocera Turning Insert DCGT21502FRU PR930: TKT00667

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT00667
$49.34

Kyocera Turning Insert DCGT21502FRU PR930, manufacturer part number TKT00667.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 0.0040 in (0.10 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8804086; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 21502; Hand Direction: Right; Insert Style: DCGT; Insert Shape: 55 Degree Diamond; ANSI Designation: DCGT21502FRUPR930; Chip Breaker Type: U; ISO Designation: DCGT070201FR-U; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning, Sub-Spindle; Insert Grade: PR930; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: TiCN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
TiCN
IC Size (Metric)
6.35
Included Angle
55
Corner Radius (Decimal)
0.0040
Insert Style
DCGT
Insert Thickness (Fractional)
3/32
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
21502
Old Material Number
8804086
Insert Thickness (Metric)
2.38
Machining Operations
Back Boring, Copying, External Turning, Sub-Spindle
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Insert Grade
PR930
Chip Breaker Type
U
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
DCGT070201FR-U
Workpiece Material
Steel, Stainless Steel
ANSI Designation
DCGT21502FRUPR930
Pack quantity
10
Coating Process
PVD
Kyocera Turning Insert DCGT21502FRU PR930: TKT00667
$49.34
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
